The surge protector is mainly used in surge protection for lightning or other transient over-voltage from low voltage power
distribution system and electrical equipment.
Product is built-in overheating and over-current protection function, which can provide low voltage power
distribution system and electric equipment with class C (Ⅱ level classification test) lightning protection. This type
adopts to 35 mm DIN TTW Guide installation. The surge protection module can be changed independently, which
possesses ease of installation and maintenance. With a remote communication alarm interface (dry contact), it is
convenient to monitor the status of the SPD.
| Item | Specification |

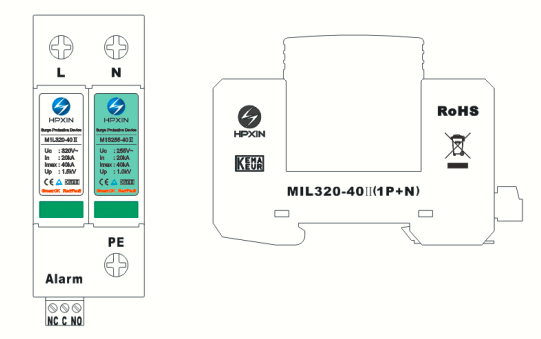

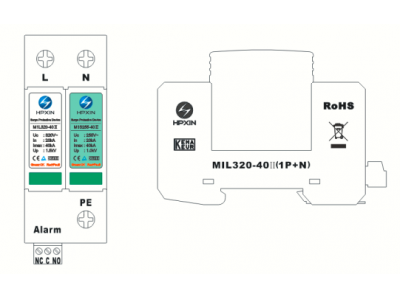

| Product model | M1L320-40II(1P+N) |
| Rated working voltage-Un | 230VAC |
| Rated operating frequency | 48-62Hz |
| Max. continuous operating voltage-Uc | 320VAC(L-N)/255VAC(N-PE) |
| Nominal discharge current-In(8/20μs) | 20kA |
| Maximum discharge current-Imax(8/20μs) | 40kA |
| Voltage protection level-Up | ≤1.5kV(L-N)/≤1.0kV(N-PE) |
| Front Fuse | 125AgL |
| Short-circuit current withstand | 25kArms |
| Size for terminal connection | 1.5 m㎡~25m㎡ (flexiblility)/35m㎡ (inflexibility) |
| Max. current for alarm port | 250V/0.5A(AC)0.1A(DC); 125V/1A(AC)0.5(DC) |
| Shell fire retardant grade | UL94 V-0 |
| IP grade | IP20 |
| Plug in module shell Material | PA 66+30% Glass fiber, cool grey2C |
| Base shell material | PBT+30% Glass fiber, cool grey2C |
| Working Temperature | -40℃~+85℃ |
| Store Temperature | -40℃~+85℃ |
| Relative Humidity | 5%~95%(25℃) |
| Height above sea level | ≤4000m |
