This surge protector is mainly used for lightning protection of low voltage power supply and distribution systems
and electrical equipment or other transient overvoltage surge protection.
The product has built-in over-temperature and over-current protection to provide last-level surge

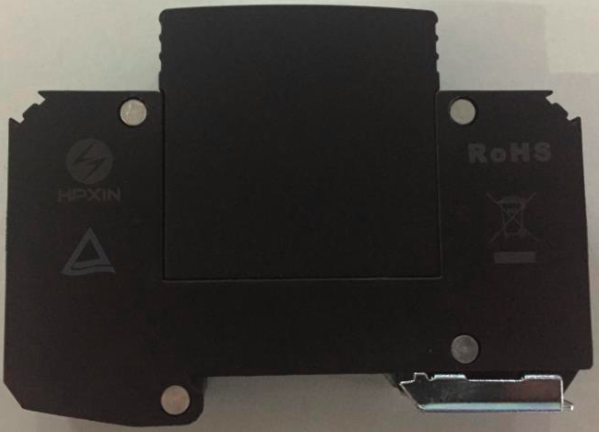

protection for DC power distribution systems. The product adopts 35mm DIN rail mounting method. The
module can be replaced independently for easy installation and maintenance. It has a remote signaling
interface (dry contact) for remote monitoring of the surge protector status
| Item | Technical Parameter |

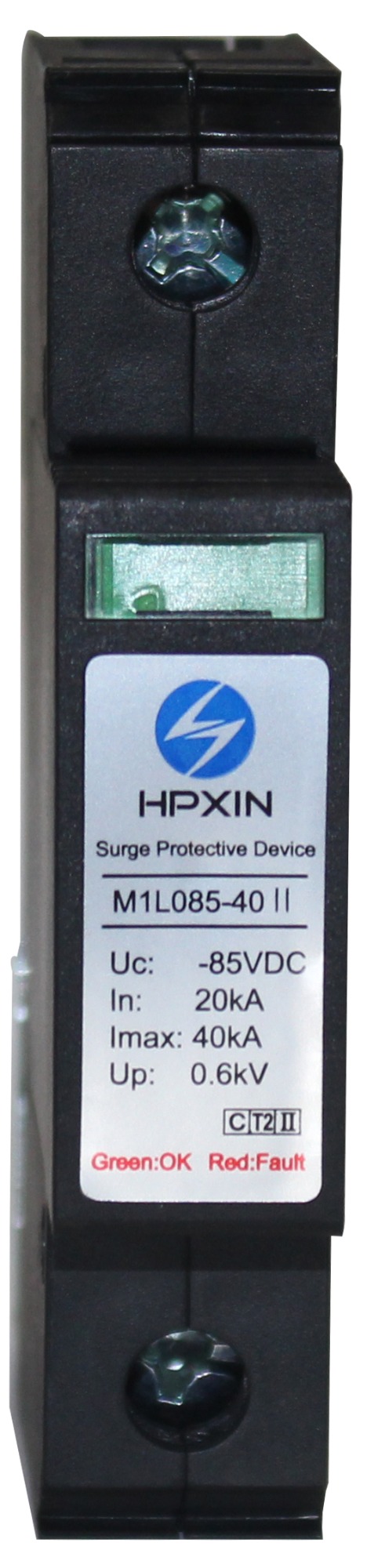

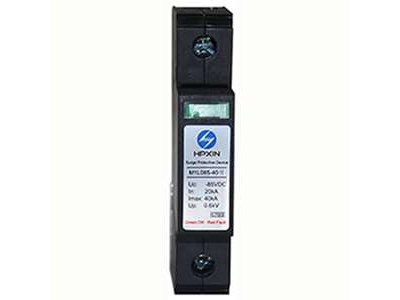

| Model No. | M1L085-40II |
| Rated voltage-Un | -48V |
| Max. continusous operating Voltage-Uc | -85VDC |
| Nominal discharge current-In(8/20μs) | 20kA |
| Maximum discharge current-Imax(8/20μs) | 40kA |
| Voltage protection level-Up(In) | ≤600V |
| Limiting voltage | ≤300V (5KA,8/20μs) |
| Response time-Ta | ≤25ns |
| Terminal wiring range | 1.5 m㎡~25m㎡ (flexible)/35m㎡ (rigid) |
| Alarm port rated operating current | 250V/0.5A(AC)0.1A(DC); 125V/1A(AC)0.5(DC) |
| Shell flame rating | UL94 V-0 |
| Shell protection rating | IP20 |
| Product certification | TUV |
| Shell Material | PA66+30%glassfiber PANTONE426C(Huawei black) |
| Working Temperature | -40℃~+75℃ |
| Storage Temperature | -40℃~+85℃ |
| Relative Humidity | 5%~95%(25℃) |
| Atmospheric Pressure | 60~106 kPa |
| Altitude | ≤4000m |
